Principles and Suitable Contexts
Images of a panel or device show indicated states such as armed, fault or door open. They do not establish identity or mechanical locking. Use them for consistency checks against authorised records. Do not infer a person’s behaviour or responsibility from a single indicator or an unverified state.
Armed means surveillance enabled under the system's definition, fault identifies malfunction, and door open describes its indicated door state. Interpret each against the manual and zone scope. A lock lamp does not prove latch engagement or identify who passed through. Keep the displayed status and time as the record, rather than naming a personal event without independent supporting evidence and appropriate authority to use it.
Matching images to logs requires clock alignment and authorised access. Camera data can be wrong or stale; it is not a definitive answer when it conflicts with another source. Enable responsible reviewers to examine discrepancies while restricting information to the question. Observing panel status does not require expanding into facial identification or collecting people's behaviour merely because a camera makes broader capture possible.

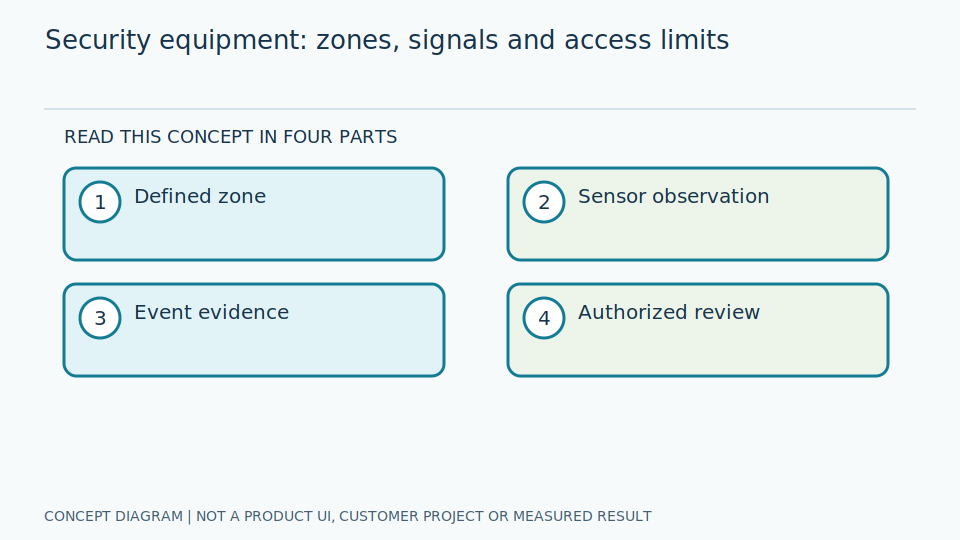

Scroll the diagram horizontally to inspect all details.
Data and Preparation
Define the regions to read and information to exclude, such as passwords or access cards. Set image-viewing permissions, retention and timestamp alignment with the event log. Collect normal and fault examples without exposing personal data, and limit access to the evidence to people with an authorised purpose.
Create an administrator-confirmed map of states, zones and point names. Include essential labels without unnecessary views of keypads or card details. If masking images, verify that necessary status names remain available. Use ordinary operation or authorised inspection records, never trial door opening or permission changes just to generate examples. Privacy limits may reduce observability; retain that limitation rather than expanding collection without a justified purpose.
Separate roles for value viewing and evidence-image viewing, recording access under organisational policy. Retention should follow inspection purpose, not unlimited technical capacity. Check panel and camera time bases and record known offsets. Before use, have an independent reviewer match sample events with minimal personal information, verifying that evidence is sufficient without granting access broader than the task requires.
Failure Cases and Limitations
A frozen frame can show a closed door after it has opened. An armed indicator does not prove every zone is ready, and clock differences can associate an event with the wrong person. Security and escape-route interactions require responsible review; never use images to command an obstruction to evacuation.
Panels may summarise many zones or rotate entries, so one main lamp can miss a faulty zone. Separate the summary from details actually observed. A clear old image must not appear current. Absence of a recorded event is not proof that no event occurred: there may be capture gaps or activity outside the camera view. Keep that uncertainty explicit when reviewing historical sequences.
Clock-mismatched event association can produce false allegations. Use observation language and let authorised personnel examine combined evidence. Narrow capture improves privacy but leaves some points uninspectable; accept those limits rather than unjustifiably widening surveillance. Image results must not lock escape routes or replace emergency systems, and one panel source alone cannot establish the security or safety of an entire area.
Evaluation Methods
Check indicated states against event logs and authorised physical inspections. Measure missed abnormal states, delay and stale-data detection. Test access restrictions and deletion separately from reading accuracy. An accurate status reading is not itself proof that the area is secure or that retention and access controls are operating correctly.
Independent reviewers should label visible states and ambiguity before matching logs using a verified time basis. Personal names are not reference labels for panel-state classification. Distinguish misreading from an indicator disagreeing with physical conditions. Measure delay from displayed event to readable image, without calling it the response time of the whole security system: several other stages and responsible actions may intervene.
Acceptance should cover unknown status during image loss, purpose-limited collection and role-based image access using nonsensitive test data. Check deletion of copies within policy scope, not merely hiding records from a screen. OT security references help organise controls and acceptance questions; they do not certify a product or prove doors and areas secure. Report the evidence boundary alongside the reading results.
Review Checklist
- Minimise personal data captured in images.
- Define access permissions and retention.
- Verify timestamp alignment.
- Do not treat image states as certification of area security.
References and Further Reading
References explain principles, not product certification. Requirements from another jurisdiction do not automatically replace local requirements or the actual equipment manual.
